Author Topic: automatic electric AE50  (Read 2052 times)

Offline hemijim

  • *
  • Posts: 4
automatic electric AE50
« on: October 17, 2013, 12:20:44 AM »
looking for a wiring diagram for an automatic electric AE50 phone

Offline dsk

  • Hero Member
  • *****
  • Posts: 3540
Re: automatic electric AE50
« Reply #1 on: October 17, 2013, 02:25:21 AM »
Take a look at this page:
http://tinyurl.com/pxpz4sw
dsk

Offline stub

  • Hero Member
  • *****
  • Posts: 1546
  • AE Type 14 A
Re: automatic electric AE50
« Reply #2 on: October 17, 2013, 04:03:08 PM »
 hemijim,
             Here's another one from my AE 50. You can left click on pic to enlarge it.    stub
Kenneth Stubblefield
  CRPF
   TCI

Offline dumb_old_guy

  • *
  • Posts: 34
Re: automatic electric AE50
« Reply #3 on: August 28, 2015, 06:42:51 PM »

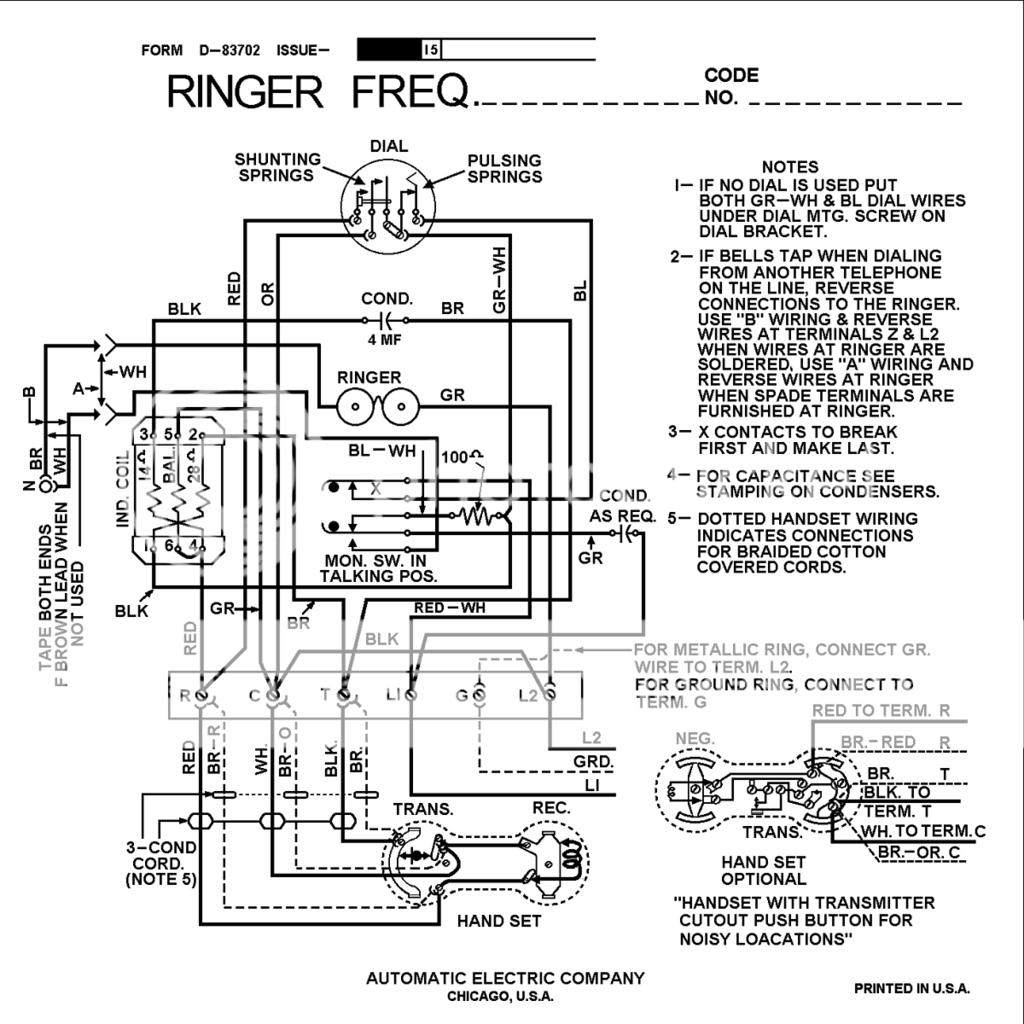

This is a manual "redraw." That is, I scanned the original and created this along side it to have a clean copy. The fonts are similar, but not exactly the same as the AE fonts.
I believe the schematic and notes are correct, but there is always the possibility of an error.

cheers
Rob

« Last Edit: August 28, 2015, 06:46:08 PM by dumb_old_guy »
